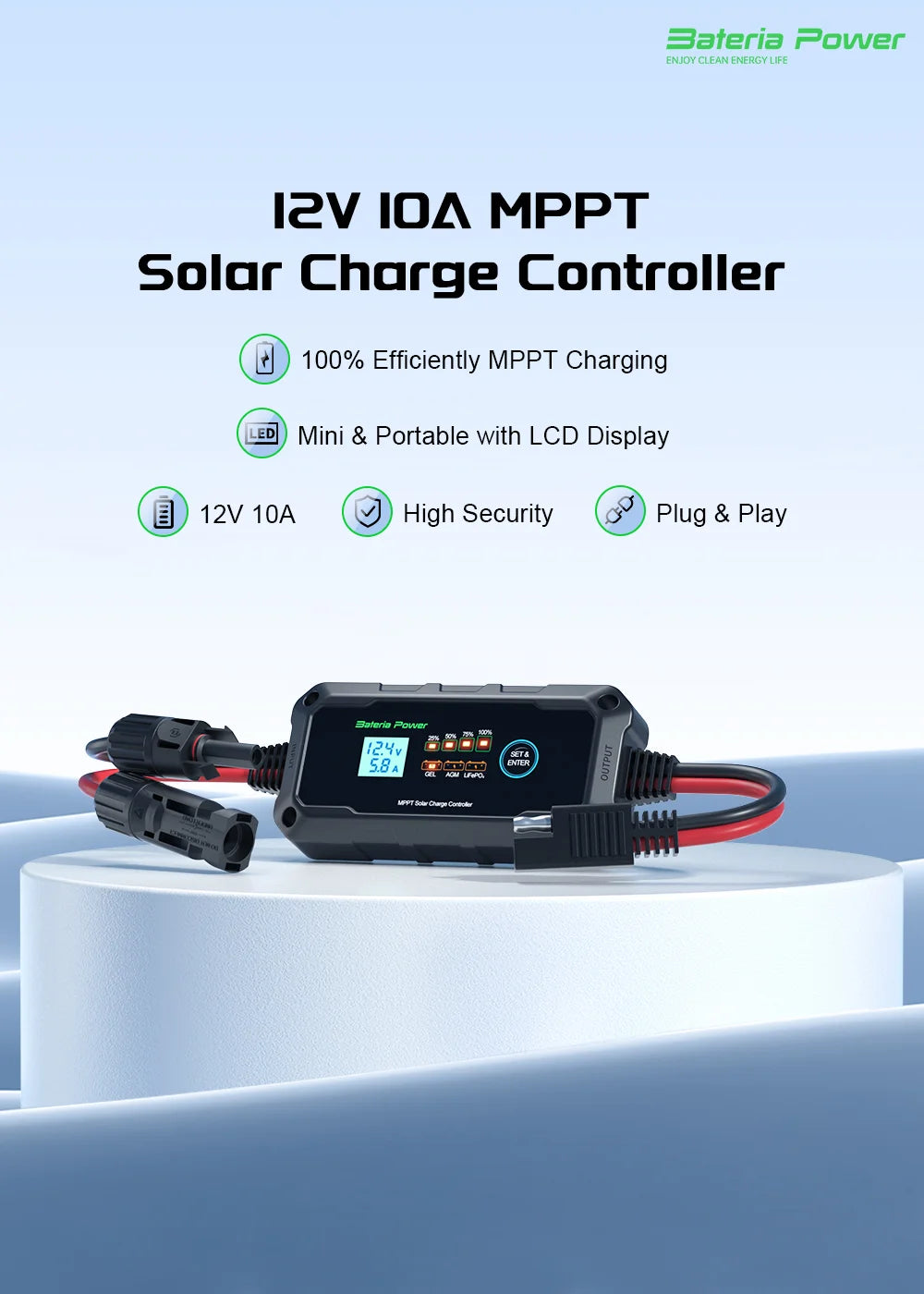

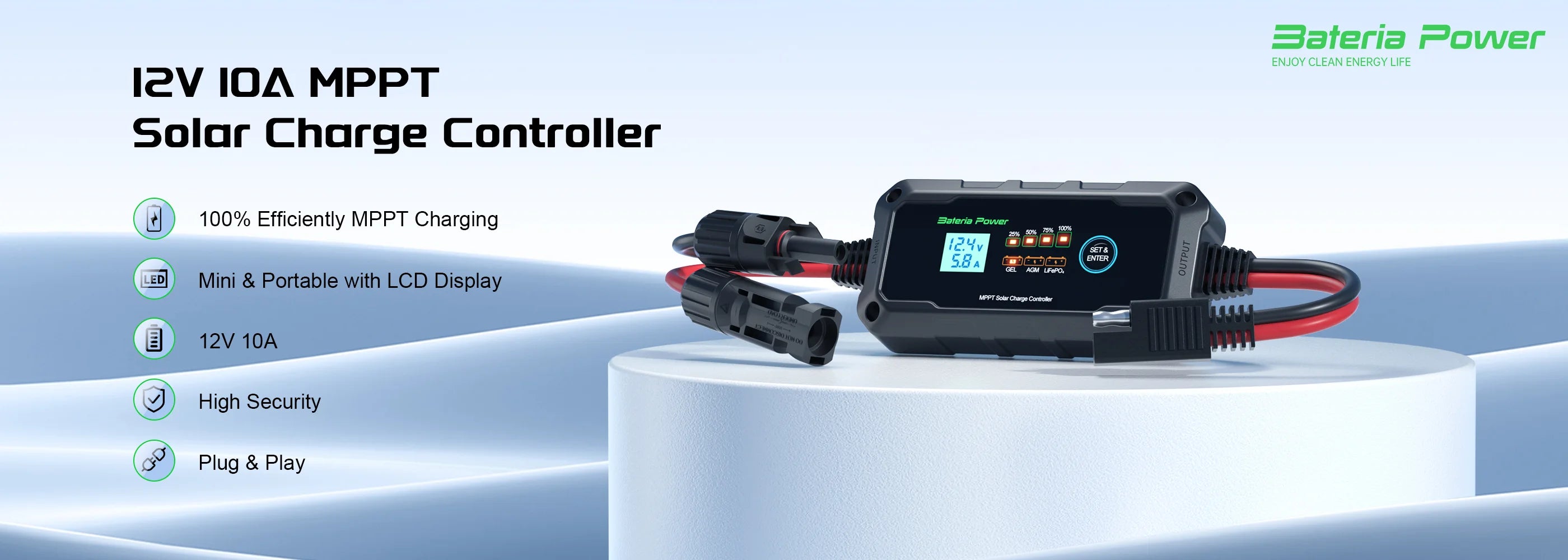

Bateria Power 12V 10A Solar Charge Controller

  • 12V Solar Charge Controller: The solar controller is specially designed for 12 Volt battery. With one button for selection, you can select battery type easily when charging. Compatible with various 12V batteries such as AGM, Gel, Deep Cycle, Sealed, Lead Acid, Flooded, and LiFePO4 lithium Battery.
  • Plug & Play: The Solar Charge Controller owns solar panel female and male connectors, which allow quickly connect to solar pannel. SAE connector also allow quickly connect and disconnect. Note: When you connect the solar controller, you need connect the battery first, then connect PV panel.
  • 100% Efficiently MPPT Charging: The MPPT Solar Charge Controller adpopts an new generation MPPT(Maximum Power Point Tracking) charging technology, which can maximize the receiving efficiency and can be 30% higher than the traditional PMW charging performance.

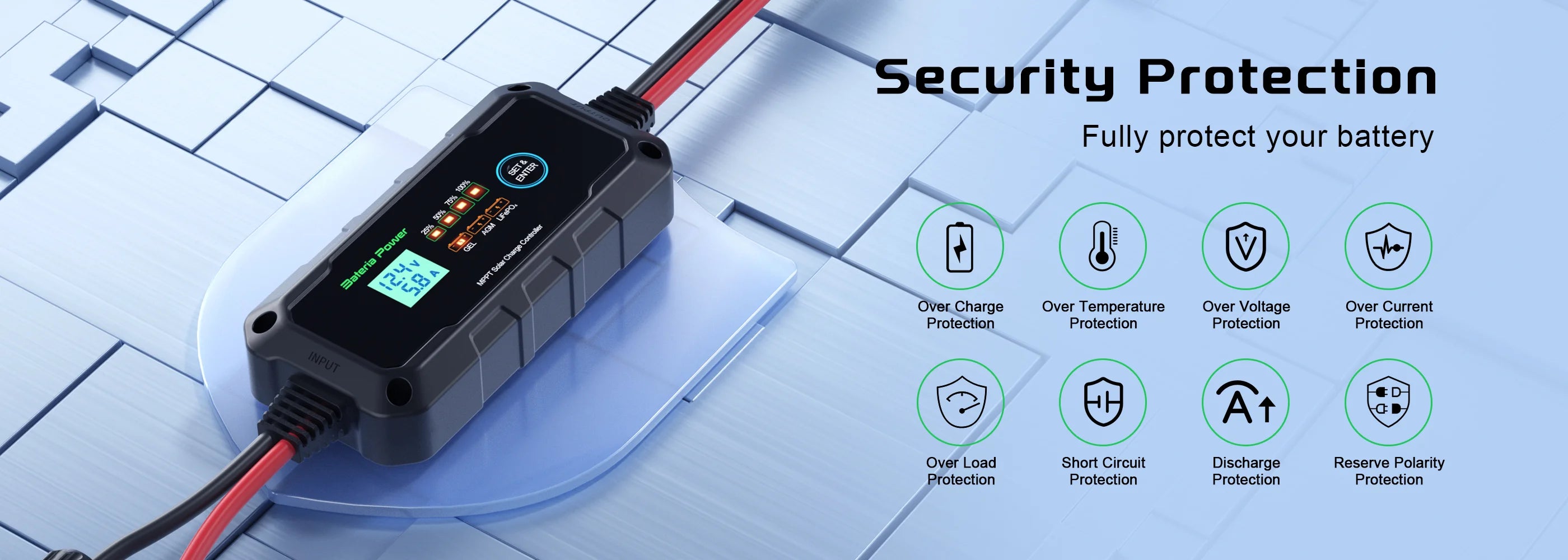

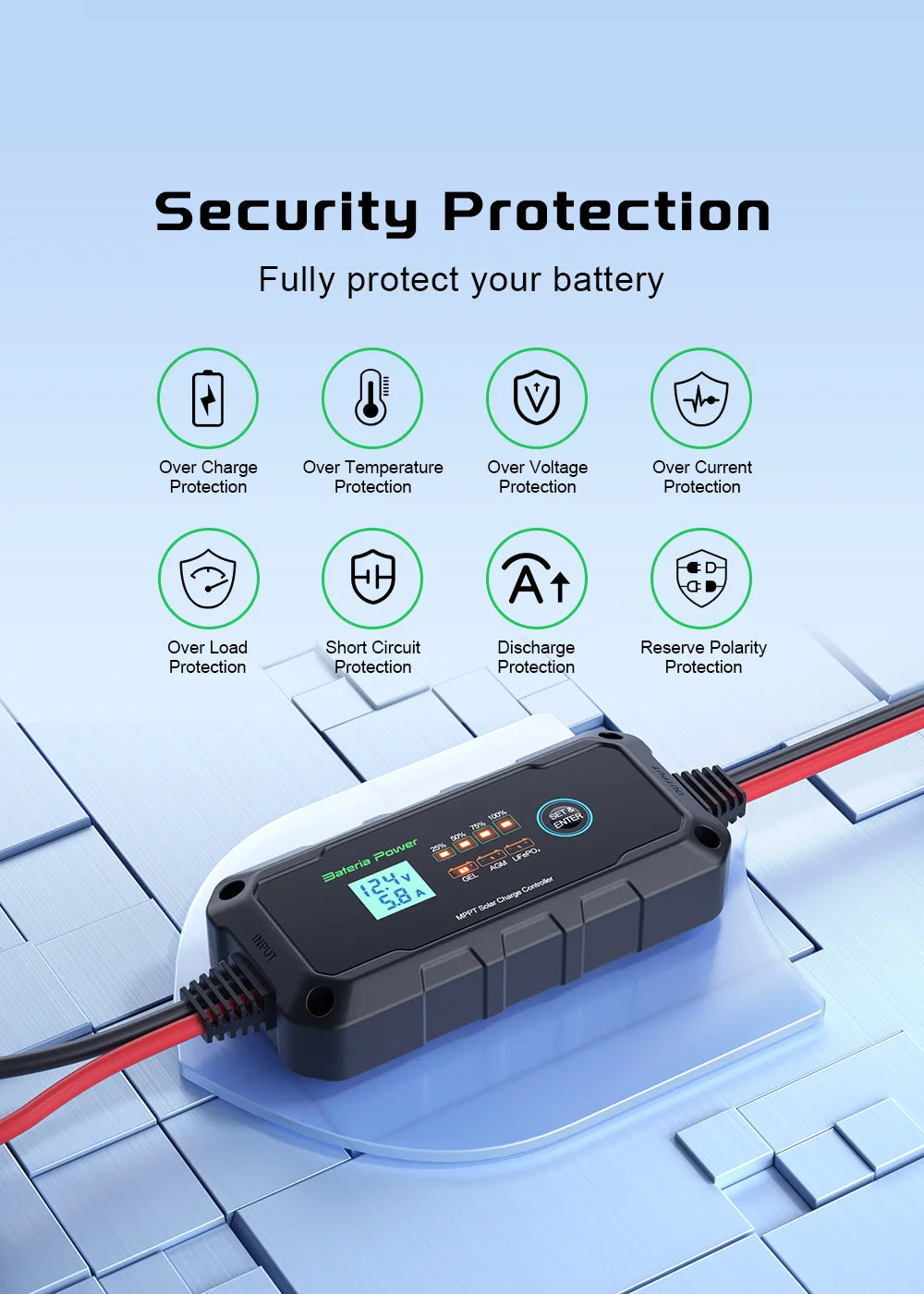

  • Fast & Safe Charging: The solar controller utilizes a 3-stage charging(Equalize, Float, Boost) system to optimize the charging performance and protect the battery. An built-in protection system provides multiple protection(Over Charge Protection, Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, Discharge Protection, Reserve Polarity Protection).
  • Compact & Portable: Upgaraded design brings a smaller size, making the solar charger controller more compact and portable. The body of the controller is 4.3x2 in with a net weight of 137g. Compared with other controllers, this 10A mppt controller will save more space when install.
  • Real-time Monitoring: Equipped with an LCD display and LED indicator light, which brings convenience for you to monitor the working status of the solar panel and battery. LCD display menu can be switched quickly by one button.
Product Parameter
  • No-load Loss: 20mA
  • System Voltage: 12V
  • Max Solar Input Voltage: <30Voc
  • Rated Solar Charge Current: 10A
  • Max Solar Input Power: 150W
  • Operating Temperature: -4℉~113℉( -20℃~45℃)
  • Internal Protection Temperature: -40℉~185℉( -40℃~85℃)
  • IP Protection: IP45
  • Net Weight: 137g
Package Include
  • MPPT Solar Charge Controller x 1
  • SAE Cable for DIY x 1
  • User Manual x 1
  • Screws x 4

Product information

LiFePO4 Battery Products

-  Shipping Countries
Only ship to the US.
We do not ship to Hawaii, Alaska, Puerto Rico, and P.O. Boxes. Orders with multiple items may be shipped in separate packages to speed up delivery.

- Shipping Prices
All products free shipping.

- Shipping Time
5-8 working day, rest day postponed to working day.

If you have any questions,
please contact us:

Solar Charge Controller & Accessories

-  Shipping Countries
North America: US/CA
Oceania: AU/NZ

Usually, we ship the products ordered by customers from the nearest warehouse. We will prioritize the delivery from the local overseas warehouse according to the actual situation of the order. If there is no local inventory, we will Arrange for products to be shipped from China. you can refer to the extimate delivery date while enter cart page or checkout page.

- Shipping Time
North America/Asia:5-8 working day.

Europe: 7-14 working day.

Oceania: 10-15 working day.

If you have any questions,
please contact us:

- Shipping Prices

Calculated based on product weight.

1.US/GE/EN/FR/BE/DK/AT/FI/HU/IT/PT/SP/GR/Asia: All products free shipping


Product Weight  Shipping Prices
0kg–3kg Free
3.1kg–6kg $5.00 USD
6.1kg and up  $10.00 USD



Product Weight  Shipping Prices
0kg–3kg Free
3.1kg–6kg $10.00 USD
6.1kg and up $12.00 USD



Product Weight  Shipping Prices
0kg–3kg $5.00 USD
3.1kg–6kg $10.00 USD
6.1kg and up $12.00 USD



Product Weight  Shipping Prices
0kg–3kg Free
3.1kg–6kg $5.00 USD
6.1kg -9kg $10.00 USD
9.1kg and up  $12.00 USD

How does my order get processed

1. Orders will be processed within 1 business day.
2. In general, the order will be shipped within 1 business day after the payment is successful.
Please note that delivery may be delayed due to weather conditions, traffic conditions, holidays and so on., we will notify the customer by email.
3. The order won't be shipped on Saturday and Sunday, and orders placed on Saturday and Sunday will be shipped next Monday.
4. After delivery, the tracking code will be notified by email, and you can click the link below to check the status of the package.


If you have not received the goods 30 days after the order is shipped, please contact our customer center at, and we will check for you whether the package has been lost. If lost, we will resend or refund for you.
Please contact us if you have any questions about product shipping information.E-Mail address:


Return & Refund Policy

Order cancellation

If you contact us within 5 hours of placing your order it may be possible to cancel your order.This also applies for pre-order products. Please email us at, and we'll do our best to help.


1. Please note that BateriaPowr will not accept returns beyond 30 days of delivery (this excludes returns for defects or quality issues, which can be accepted after inspection and approval by BateriaPowr
2. For BateriaPowr products purchased from other authorized retailers or sellers, please contact the seller where the item was originally purchased.



Please contact us via email at Thank you for your understanding : )
If you are unsatisfied with your purchase, you may return it to us for an exchange or refund within 30 days after you received items. Refunds will be issued to your original payment method only.
In order to avoid the situation that some customers return the goods without any reason in the near future and the tracking number is lost due to no notification, please contact us to obtain the right address.

What if I never received my item?
① Some orders will be sent via Amazon logistics sometimes, the order tracking number will be a bit later updated. we will send you the tracking number ASAP once it updates. and thanks for your patience and understanding.
② In addition, if the goods are lost or stolen, please contact and provide evidence like surveillance video or any other material, we will issue the claim to the logistics party and confirm the order situation. thank you very much for your understanding.
③ Except for logistics reasons. If the order can not be delivered in time or fail to be delivered for the reason that customer's address and email information is not filled correctly.
please contact
Return address  US: 1051s rockefeller ave Ontario,CA, 91761


Faulty Items

Faulty Items
We at make every effort to check your purchase thoroughly for any defects before sending it to you.
Faulty Items will be returned to us within 30 days of your receipt. And please contact us for refund or exchange.


Please write to the mailboxes as below to get help directly if you need any technical help.

Only for Orders buy from Amazon
Please contact:

Only for orders buy from
Please contact:

Whats App+86 136 7025 2596


LCD display menu can be switched quickly by one button

View Mode(LCD Only):

Short Press-------Switch Display Menu

Long Press-------Enter Set Mode

Set Mode(LED Only):

Short Press-------Select Battery Type

Long Press-------Confirm Battery Type


The Red wire is positive(+) and the Black wire is negative(-).

Please confirm the positive and negative poles of your solar panel or portable generator before purchasing.

Solar Panel Connector

Equipedsolar panel female and male connectors, which allow quickly connect to solar panel.

SAE Connector

Upgraded quality sae connector provides tighter connection and safer charging experience.

LCD and LED Display

LCD display and LED indicator light brings convenience for you to monitor the working status of the solar panel and battery.
