What Happens When XT60 Connectors Carry Too Much Power?

XT60 connectors are utilized in electric motorcycles, portable power stations, LiFePO4 battery setups, and solar energy systems that are currently in use. These small yellow plugs may look simple, but...

XT60 connectors are utilized in electric motorcycles, portable power stations, LiFePO4 battery setups, and solar energy systems that are currently in use. These small yellow plugs may look simple, but they are really critical for properly moving power between parts.

XT60 connections, like all other electrical parts, have a limit. They can get too hot, melt, or even stop working if you give them too much power.

This blog will talk about what happens when XT60 connectors are overloaded, why this is essential, and how to keep your setup safe and running smoothly.

What Are XT60 Connectors?

XT60 connectors connect cables between power sources, such as batteries and solar panels, and other devices, such as charge controllers, inverters, and small appliances.

“XT” stands for “eXtra Tough,” and “60” means it can handle short bursts of up to 60 amps of power. These are the plugs:

  • Made of tough nylon

  • Made with gold-plated metal pins

  • Rated for use with high currents, usually up to 30A all the time

  • You can't plug them in the incorrect way because they are polarized.

They are widely used in small off-grid systems, backup power systems, LiFePO4 battery packs, and solar projects that people do themselves.

How Much Power Can XT60 Connectors Take?

XT60 connectors are sturdy, however they can't do all of these things:

  • The rating for continuous current is 30 Amps.

  • For short periods of time, the peak current is 60 amps.

  • Voltage: Usually no more than 500V DC

  • Heat Resistance: It can tolerate up to 80°C (176°F) with regular use.

You could break the connector if your solar or battery system consumes more than 30A all the time.

What Happens When You Give XT60 Connectors Too Much Power?

This is what might happen if you send too much power using XT60 connectors:

  • Heat Build-up: When there is too much current, things get harder, and they get too hot.

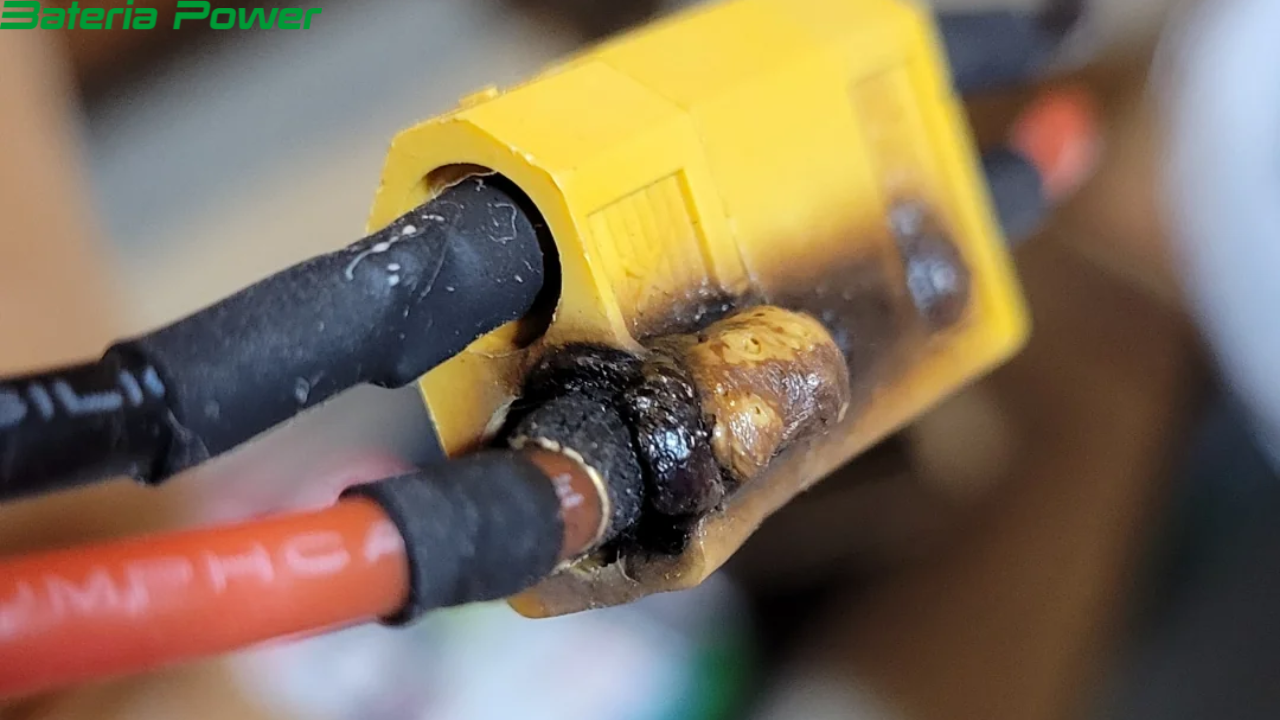

  • Melted Connectors: The nylon casing may become soft or even melt, especially when the connectors are closed.

  • Loose or Broken Pins: Metal pins can flex or expand as they get hot.

  • Short Circuit: If connectors are broken, circuits can short.

  • Shutdowns or damage to the system: Your inverter or battery BMS can stop working or get damaged.

This isn't only a waste of time; it could also be a real fire threat.

Why XT60 Connectors Don't Work When They're Heavily Loaded

XT60 connectors can stop working for a variety of typical reasons:

  • Wires that are too thin (undersized gauge): Thin wires heat up too quickly.

  • Bad soldering: Connections that aren't good make it harder for electricity to flow.

  • Using fake or inexpensive connectors: Some copies don't follow safety rules.

  • No Ventilation: Connectors get hotter faster when they are in closed spaces.

  • Reconnecting often: Pins can get loose or wear out over time.

The XT60 is great, but it can't handle abuse. A good setup is highly vital for long-term safety.

Examples of Solar and Battery Systems in Real Life

Example 1: How to Install Solar Panels

In a portable solar generator arrangement, a user used an XT60 connector to link the cable from the panel to the MPPT charge controller. The connector began to get hot since the system required more than 30A of electricity at its peak. In the end, it melted a little and the connection kept going in and out.

Example 2: A Battery for an Electric Bike

A company that makes electric bikes utilized XT60s to link the battery to the controller. But when the motor was operating quickly, it needed 40 to 50 amps. The connector got too hot after a few weeks. The pins were loose and the nylon container had gone brown.

These examples show how crucial it is to check that your XT60 connectors can manage the power you need.

How to Keep XT60 Connectors from Getting Too Full

Here are some smart ways to avoid getting into trouble:

  • To figure out how many amps your system has, check the current (A) that goes through the connector.

  • Match the Wire Gauge: Use wire that is 12 AWG or thicker for up to 30A.

  • Only get good connectors. Stick with companies you know and trust, like Amass.

  • Keep the wire runs short. Longer cords make things tougher and hotter.

  • Use ventilation, especially in closed battery or solar boxes.

  • Check back often: Check for heat, burn marks, or a loose fit.

If you follow these steps, your XT60s will last longer and be safer.

Other Choices for XT60 for Larger Weights

You might want to utilize stronger connectors if your system always needs more than 30A. Here's a simple guide:

Connector Type

Max Amps

Best Use

XT60

30A

Small solar systems with light batteries

XT90

90A

High-power batteries and solar inverters

Anderson SB50

50–100A

Heavy-duty energy designs for industry

EC5

120A

Power and backup systems

Most of the time, XT90 connections are the next step forward. They look like XT60s, but they're bigger and can handle more power.

Frequently Asked Questions About XT60 Connectors

Can you use XT60 connectors in a solar panel system?

Yes, as long as your system doesn't draw more than 30A of current all the time. For extra power, use XT90.

Do XT60 connectors protect water from getting in?

Not by default. You will need housing that can withstand the elements or connectors with rubber seals.

Is it possible to lengthen XT60 cables?

Yes, but use lines with a lower AWG (thicker wires) to lower the heat and voltage drop.

Do XT60 connectors work with LiFePO4 batteries?

Yes, of course. They are widely used in LiFePO4 battery packs that can handle up to 30A.

Conclusion

XT60 connectors are small yet very beneficial for solar energy systems, battery banks, and portable power setups. But you need to stay inside their limits. If they carry too much current for too long, they will get too hot, melt, or shatter.

To use XT60 connections safely:

  • Know what your system needs right now

  • Get the proper size wire

  • Use connectors that are strong and well-made

  • Don't run cables for a long time

  • Look for damage or heat often

You should switch to a higher-rated connector, like the XT90, if your system needs more than 30A all the time.

Using the right connector in the right way will keep your equipment safe, protect it, and make your setup more reliable over time.
