How do you wire a solar panel charge controller? Solar energy is increasingly becoming a part of our lives, offering a clean and renewable source of power. At the heart of any solar power system lies the solar panel charge controller. This crucial device regulates the voltage and current from the solar panels to the batteries, ensuring efficient and safe operation.

In this blog, we aim to simplify the wiring process of a solar panel charge controller, making it accessible and easy to understand for everyone. Follow these steps to ensure a successful installation and optimal performance of your solar system.

Understanding Solar Panel Wiring

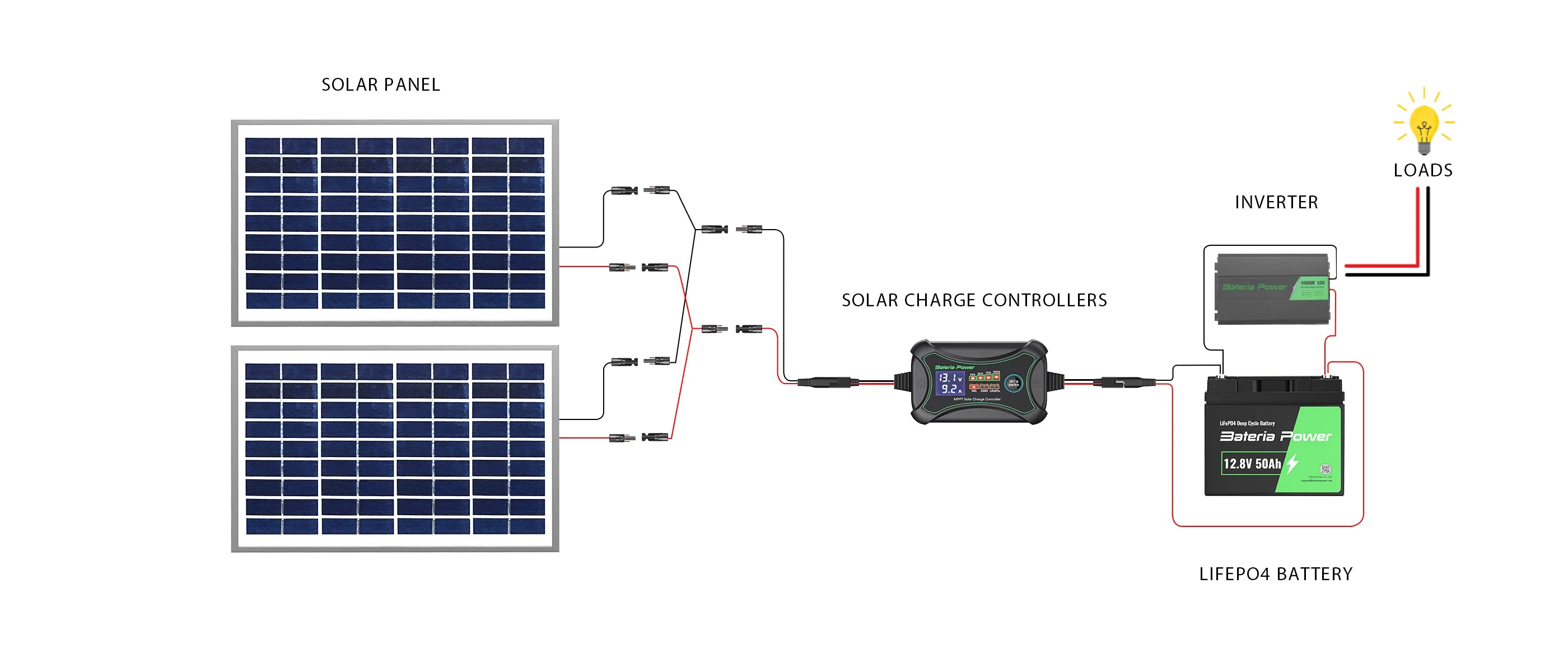

Before diving into the wiring process, it's essential to familiarize yourself with the basic components of a solar panel system. Understanding these components will give you a clear picture of how everything connects and operates. Here are the main components:

1. Solar Panels: Convert sunlight into DC electricity.
2. Charge Controller: Regulates the power going into the batteries.
3. Battery Bank: Stores the energy produced by the solar panels.
4. Inverter: Converts DC electricity from the batteries into AC electricity for household use (optional, depending on your setup).

Basic Components of a Solar Panel System

• Solar Panels: Solar panels, consisting of multiple solar cells connected in series or parallel, are the heart of the system, converting sunlight into electricity through the photovoltaic (PV) effect.
• Charge Controller: The charge controller regulates the flow of electricity from the solar panels to the battery bank, preventing overcharging and ensuring the batteries remain in optimal condition.
• Battery Bank: The battery bank stores the electricity generated by solar panels and provides a continuous power supply during periods of low or no sunlight.
• Inverter: The inverter converts the direct current (DC) electricity generated by the solar panels and stored in the batteries into alternating current (AC) electricity, which is compatible with household appliances and the electric grid.

Series and Parallel Connections in Solar Panel Wiring

When wiring solar panels, you have two main options: series and parallel connections. Understanding the difference between these connections is crucial for optimizing the performance and efficiency of your solar panel system.

• Series Connection: In a series connection, you link the positive terminal of one solar panel to the negative terminal of the next panel to create a daisy chain effect, with the voltage increasing while the current remains constant. Series connections are useful when you need to increase the total voltage but not the current of your system.
• Parallel Connection: In a parallel connection, you connect the positive terminals of multiple solar panels together and the negative terminals together, causing the current to add up while the voltage remains constant.Parallel connections are beneficial when you want to maintain a constant voltagebut need a larger current for your system.

Importance of Proper Wiring

Proper wiring of a solar panel charge controller is crucial for the safety and efficiency of the solar power system. Incorrect wiring can lead to reduced performance, damaged components, or even safety hazards.

Tools and Materials Needed

Essential Tools:

• Wire cutters and strippers
• Screwdrivers
• Multimeter
• Crimping tool

Recommended Materials:

• Solar panels
• Solar panel charge controller (PWM or MPPT)
• Batteries
• Appropriate cables and connectors
• Fuses and circuit breakers
• Mounting hardware

Having the right tools and materials at hand is the first step towards a successful installation. Ensure that all components are compatible with each other in terms of voltage and current ratings.

Safety Precautions

Importance of Safety

Working with solar panels and electrical components can be hazardous if proper safety measures are not followed. Always prioritize safety to avoid accidents and injuries.

Basic Safety Tips:

• Turn off all power sources before starting the installation.
• Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
• Work in a dry environment to prevent electrical shocks.
• Double-check all connections to ensure correct polarity.

By following these safety precautions, you can ensure a safe and successful installation process.

Step-by-Step Wiring Guide

Check out this amazing video on YouTube，The content is from the Youtube channel named: Scott's Solar Projects: How to Setup a Solar Charge Controller (menu, battery type & wiring)

Step 1: Planning and Preparation

Assessing Your Solar Power Needs

Determine the power requirements of your household or system. This will help you select the appropriate size and type of charge controller.

Selecting the Appropriate Charge Controller

Choose a charge controller that matches the voltage and current specifications of your solar panels and batteries. An MPPT controller is recommended for higher efficiency.

Designing Your Wiring Layout

Plan the layout of your solar system, including the placement of panels, charge controller, and batteries. This helps in organizing the wiring process and ensures all components are within reach.

Step 2: Connecting the Solar Panels

Identifying Positive and Negative Terminals

Ensure you correctly identify the positive and negative terminals on the solar panels to avoid incorrect connections.

Using Appropriate Connectors and Cables

Use high-quality connectors and cables to ensure reliable and safe connections. Secure the connections properly to prevent any loose ends.

Securing the Connections

Double-check the connections to ensure they are tight and secure. Loose connections can lead to power loss and potential hazards.

Step 3: Wiring the Charge Controller

Connecting the Solar Panels to the Charge Controller

Connect the positive and negative terminals of the solar panels to the corresponding inputs on the charge controller.

Ensuring Proper Polarity

Always check the polarity of the connections to prevent damage to the charge controller and other components.

Using Fuses or Circuit Breakers for Safety

Install fuses or circuit breakers between the solar panels and the charge controller to protect against overcurrent and short circuits.

Step 4: Connecting the Batteries

Understanding Battery Configuration (Series vs. Parallel)
Decide whether to connect your batteries in series (to increase voltage) or parallel (to increase capacity). This depends on your system's requirements.

Wiring the Batteries to the Charge Controller

Connect the batteries to the charge controller, ensuring correct polarity. Use proper connectors and cables for secure connections.

Ensuring Secure and Correct Connections

Double-check all connections to ensure they are correct and secure. Incorrect connections can lead to poor performance and potential hazards.

Step 5: Final Connections and Testing

Connecting the Load (Optional)

If your charge controller has a load output, connect your devices to it. This allows the controller to manage the power supplied to the load.

Checking All Connections for Accuracy

Inspect all connections to ensure they are accurate and secure. Look for any loose or incorrect connections.

Powering On the System and Testing Functionality

Turn on the system and use a multimeter to test the voltage and current at various points. Ensure the system is functioning correctly and efficiently.

Additional Tips for Successful Installation

Best Practices for Cable Management

Organize and secure cables to prevent tangling and damage. Use cable ties and protective conduits where necessary.

Tips for Weatherproofing Outdoor Installations

Protect outdoor connections from weather elements by using weatherproof enclosures and sealants. This prevents corrosion and extends the lifespan of the components.

Importance of Regular Maintenance and Inspections

Perform regular maintenance and inspections to identify and address any issues early. This ensures the longevity and efficiency of your solar power system.

Conclusion

Solar panel charge controllers play a crucial role in the efficiency and safety of solar power systems. Proper wiring and installation are essential to maximize the benefits of your solar setup. By following the steps outlined in this guide, you can ensure a successful installation and long-lasting performance. Invest in a good quality charge controller, prioritize safety, and maintain your system regularly to enjoy the benefits of solar energy.
