These little but strong connectors guarantee a safe and effective connection between solar panels, enabling an uninterrupted flow of energy. But have you ever given any thought to the strength of an MC4 connector?
- It can manage what amount of current?
- And why is this important?
This article will go over MC4 connector capacity, operation, and factors influencing strength as well as their present capacity. Knowing MC4 connectors will enable you to enhance efficiency and safety, whether building a solar system for your house or a business project.

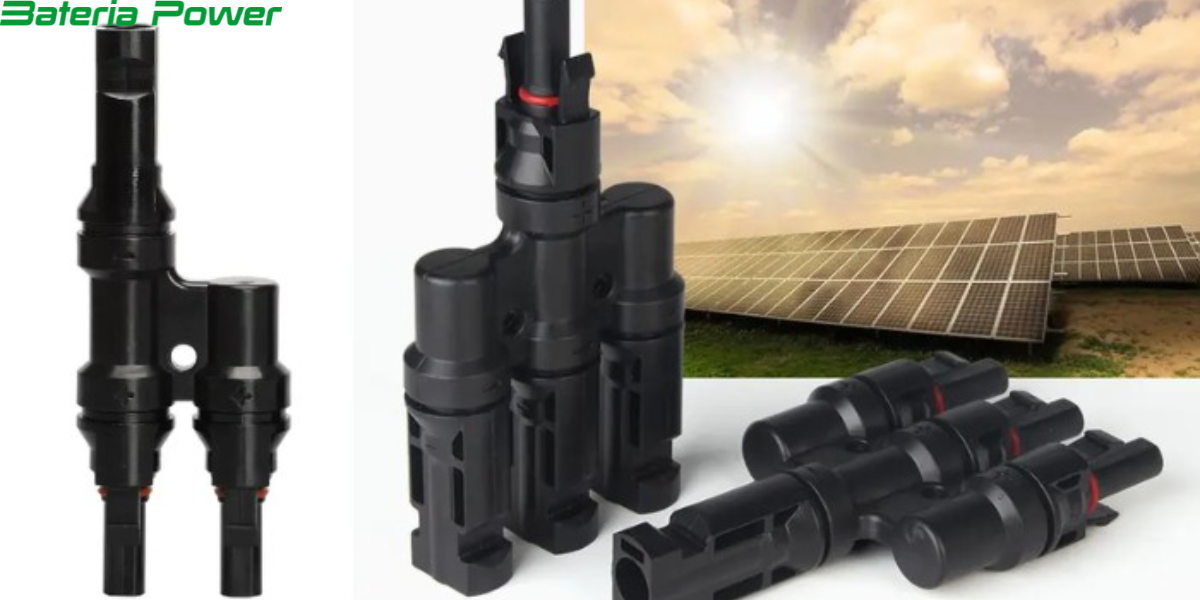

MC4 stands for Multi-Contact, 4mm, referring to the contact pin's interior connection diameter. It is the industry standard for linking solar panels in photovoltaic (PV) systems.
Designed to provide a strong and weatherproof connection, MC4 connectors guarantee little power loss and maximum efficiency.
-
Locking mechanism stops unintentional disconnections.
-
Waterproof design: Rated IP67 or IP68, making them dust- and water-proof.
-
High voltage compatibility: Suitable for up to 1000V DC.
-
UV resistant: Designed to resist severe environmental conditions.
Anyone using solar energy has to have MC4 connectors since they provide a dependable and safe energy transfer.
MC4 Connector Current Rating: Power Handling Capacity
The current rating of MC4 connectors is among their most crucial features since it determines their safe electricity handling capacity.
- Most MC4 connectors are rated 30A (Amperes).
- Voltage rating usually ranges from 600V to 1000V DC.
- Wire compatibility: Supports 10 to 12 AWG wires.
Why This Matters
Using an MC4 connector above its rated capacity runs the risk of overheating, potentially causing:
- Damage
- Power loss
- Fire hazards
Using the correct MC4 connector guarantees the longevity and durability of your solar system.
Factors Influencing MC4 Connector Strength
An MC4 connector's performance and longevity depend on several factors.
1. Compatibility of Wire Sizes
Wire gauge must be carefully selected.
-
Lower AWG numbers (thicker wires) can handle more current, reducing resistance and preventing overheating.
2. Resistance Against Temperature
MC4 connectors are used in various environments.
-
High temperatures can cause expansion.
-
Cold temperatures may make them fragile.
- Quality connectors are designed to withstand extreme conditions.
3. Material Quality
-
Strong, high-quality plastic and metal contacts ensure long-lasting performance.
-
Certified connectors from reputable brands provide reliability and safety.
4. Connection Type
-
Proper soldering or crimping ensures a tight fit, reducing the risk of loose connections that cause power loss.
Why Current Rating Matters in Solar Systems
Many people underestimate the importance of using the correct MC4 connectors, but it significantly affects system performance.
1. Safety Issues
-
Overloading an MC4 connector can lead to fire hazards.
- Always ensure the current rating matches your solar system’s specifications.
2. Efficiency Problems
- Poor connections waste energy, reducing your solar system’s overall efficiency.
3. System Longevity
- Using the correct-rated connectors reduces wear and tear, extending your system’s lifespan.
Selecting the Correct MC4 Connector for Your Setup
A safe and efficient solar system depends on the right MC4 connector.
1. Check the Current Rating
- Make sure the connector matches your solar panel's current flow.
- If your system generates 30A, use MC4 connectors rated for 30A.
2. Choose Certified Brands
-
Avoid cheap, unbranded connectors that may not meet safety standards.
- Reputable brands like Staubli, Amphenol, and Renogy offer high-quality MC4 connectors.
3. Weatherproofing Requirements
- For outdoor solar systems, select IP67 or IP68-rated connectors for dust and water resistance.
4. Use Proper Installation Tools
-
Invest in an MC4 crimping tool for secure and reliable connections.
To keep your solar system working efficiently, avoid these mistakes:
1. Mixing Different Brands
- Different MC4 brands may not fit together properly, leading to connection issues.
2. Improper Locking
- If not secured properly, MC4 connectors can cause power loss.
3. Using Undersized Wires
-
Thin wires (higher AWG) cannot handle high current flow, leading to overheating and failure.
4. Ignoring Waterproofing
-
Exposed connectors may corrode and fail over time.
Follow these simple tests to ensure your MC4 connectors are functioning properly:
1. Visual Inspection
- Look for cracks, discoloration, or loose fittings.
2. Voltage and Current Testing
- Use a multimeter to check proper conductivity.
3. Heat Check
-
Touch the connectors while your system is running.
- If they feel too hot, there may be a problem.
Conclusion
A safe and efficient solar energy system relies heavily on MC4 connectors. Understanding their current rating, proper usage, and common mistakes will help you maximize your solar setup.
To ensure longevity, safety, and efficiency:
- Use high-quality MC4 connectors
- Match the correct current rating
- Ensure proper installation
Next time you set up or maintain your solar panels, remember:
A small connection can make a BIG difference!
