Can an SAE Extension Cable Work with Any Charge Controller?

You probably know about the SAE Extension Cable if you use solar electricity for your home or RV. This wire is very important for getting your solar panels to work with your charge controller or battery.

But a lot of folks want to know if an SAE Extension Cable would work with any charge controller. This blog will break out the answer in simple terms. We'll show you the essentials, how it works, and how to avoid making frequent mistakes.

What Does an SAE Extension Cable Do?

A two-wire power cable called an SAE Extension Cable is used to extend the connection between two devices. It is often used in RV setups, motorcycles, battery maintainers, and solar power systems.

Important Features:

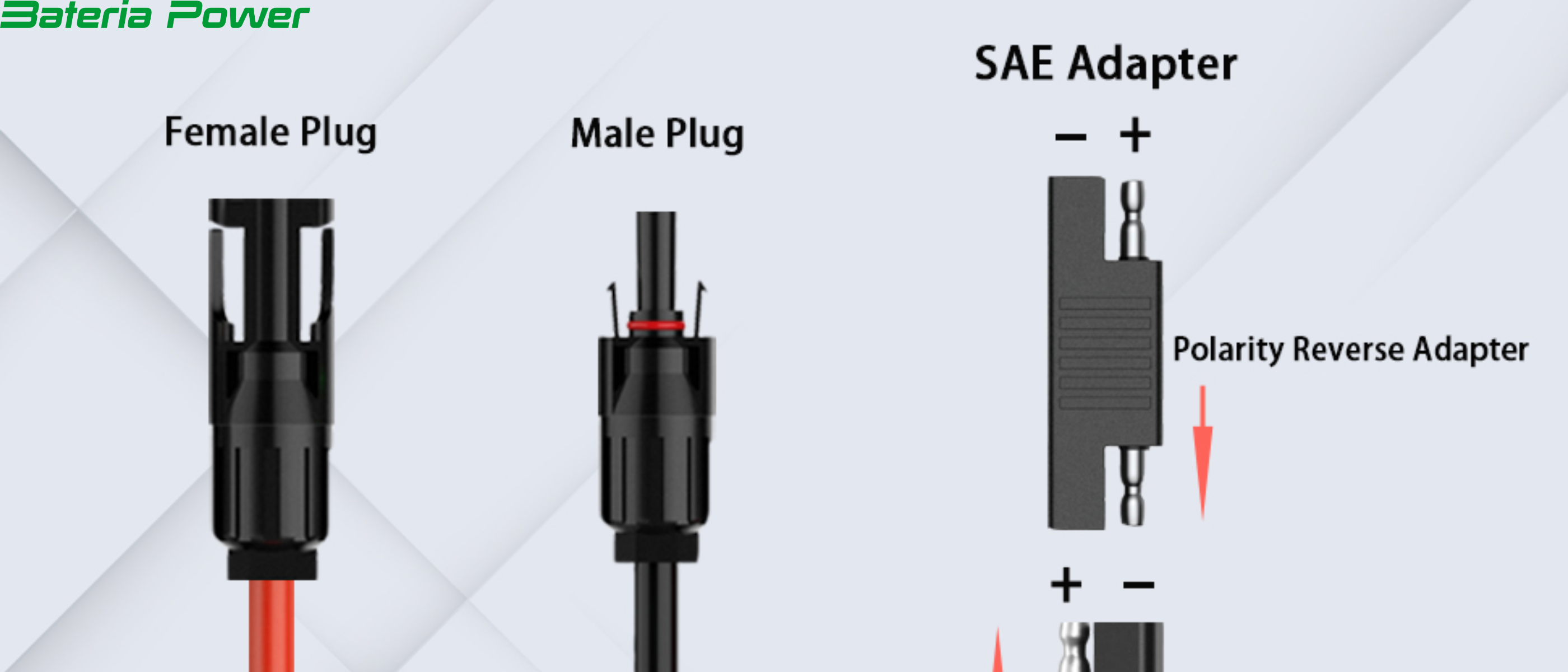

Two-pin connector with one male and one female end
Marking polarity shows which wire is positive and which is negative
Fits a lot of 12V and 24V products, therefore it's universal

These wires come in handy when your solar panel is a long way from your battery or charge controller. You don't have to move the whole system; you just need to add one extension cord.

How Cables Connect to Charge Controllers

The solar charge controller is like the brain of your solar system. It safely absorbs energy from the solar panel and transmits it to the battery.

The charge controller needs to be connected to the following things to work correctly:

The solar panel (the side that gets power)
The battery (side that sends power)

Cables, such the SAE Extension Cable, are typically used to make this connection, especially when the devices are far apart.

Are All SAE Extension Cords the Same?

The short answer is no. Not all SAE extension cords are made the same way. Keep an eye out for these things:

1. The Thickness of the Wire

A thin wire (with a larger AWG number) can get too hot and not carry adequate current.
A thicker cable (with a lower AWG number) is safer and works better over longer distances.

2. How Long the Cable Is

Resistance can cause longer wires to lose power.
Always choose the shortest length that will still reach your setup.

3. Polarity

Not all wires are connected the same way.
Reversed polarity can hurt your controller or battery.

4. Quality of the Connector

Cheap connectors could not fit well or might break easily.
Good connections fit snugly and securely.

Will an SAE Extension Cable Work with Any Type of Charge Controller?

Yes, but you have to use the appropriate settings and connectors.

When it works:

Polarity is right
Cable can handle the current and voltage
The size of the connector is great

It might not function in certain situations:

If the polarity is flipped
If the cable is too thin or too lengthy
If your controller is not standard or is your own

So, even though SAE Extension Cables work with a lot of things, you should always double-check before you connect.

Problems with Compatibility That Happen a Lot

Most of the time, SAE cables are "plug-and-play," however there are still some difficulties that happen:

Polarity Reversed
Some cables have the positive and negative wires switched.
Always look for indications or use a multimeter to test.

Getting Too Hot
Using a cable that is too thin for your current can make it heated.
This could break your equipment or possibly create a fire.

Connections That Aren't Tight
SAE connectors that aren't made well might not latch properly.
A plug that isn't tight can produce sparks or power interruptions.

Getting Wet
Most SAE plugs don't keep water out.
Cover the connectors or buy models that are waterproof if you use them outside.

How to See Whether They Work Together

Follow these instructions before utilizing an SAE Extension Cable with your charge controller:

Look at the User Manual
Check what kind of connector your charge controller can use.
Make Sure the Voltage and Current Ratings Are the Same
Check that the cable can withstand the voltage (12V/24V) and current of your system.
Check the Polarity
Check which wire is positive and which is negative with a multimeter.
Check the Size of the Connector
Make sure the male and female connectors fit together tightly without straining them.
If You Need Help, Ask for It
Seek in touch with the maker or post in solar forums to seek help from people who know what they're talking about.

How to Use an SAE Extension Cable Safely

Here are some advice from solar system specialists to keep you safe and make your system work better:

Use Cables That Are Labeled Correctly
This helps keep the ends of the connections and the polarity from being mixed up.
Get Waterproof Models for Use Outside
Rain and dampness can damage cables that aren't weatherproof.
Choose the Right Wire Size
For longer distances or higher current, use 12 AWG or 14 AWG, for instance.
Make Sure the Connection Is Safe
To keep cables from getting strained or disconnected, use clips or holders.
Add Protection with a Fuse
To keep your system safe, put a fuse between the battery and the controller.

Example from Real Life

A man in India put a tiny 12V solar panel installation on his roof. He bought an inexpensive SAE Extension Cable at a neighborhood store to make the panel stretch farther.

At first, everything was good, but after a few weeks, the wire got heated and the battery started to die. It turned out that the cable was too thin and the polarity was wrong!

Everything worked fine after I switched to a high-quality SAE Extension Cable that was the right thickness and had the right labels. Two years later, his system is still running.

Final Thoughts

A solar power system needs an SAE Extension Cable to work well. It makes your system quick to set up and adaptable. You need to check first to make sure that all cables work with all charging controllers.

Here's a short list:

Correct polarity
The right size and length of the wire
Connectors that are strong and won't get wet
Matches your charge controller specs

An SAE Extension Cable is a safe, reliable, and sensible choice if you utilize it the proper way. It helps you get the most out of your solar panels.

Make a sensible choice. Make safe connections. Have fun with solar power.
